Aluminum Casement Windows

Precision-engineered aluminium casement windows designed for light, performance, and architectural flexibility.

Designed for Light, Comfort & Timeless Appeal.

The APC 46 system represents a paradigm shift in aluminium casement design. Engineered to accommodate both inward and outward opening configurations, it delivers exceptional versatility without compromising on structural integrity.

Designed for the modern architectural envelope, the system integrates advanced weather sealing technology with a slim 39mm profile depth, ensuring maximum light penetration while maintaining rigorous thermal and acoustic performance standards.

Engineered Benefits. Felt Every Day

Advanced system design ensures reliability you can trust and performance you can feel, day after day.

ASC 46

Precision Opening

Precision-engineered hinges allow a full 90° opening for maximum airflow and easy cleaning. Balanced hardware ensures smooth, stable operation and long-term structural integrity.

Thermal Protection

Multi-chambered profiles and EPDM gaskets deliver superior insulation and weatherproofing. This system stops leaks and drafts, maintaining indoor comfort in any climate.

Structural Integrity

The 39mm frame supports 40kg sashes, allowing for larger glazing with minimal deflection. This structural rigidity ensures long-term stability and reliable operation under high wind loads.

Enhanced Security

Engineered for RC2/RC3 security, this multi-point system uses reinforced engagement points to distribute force and neutralize forced entry.

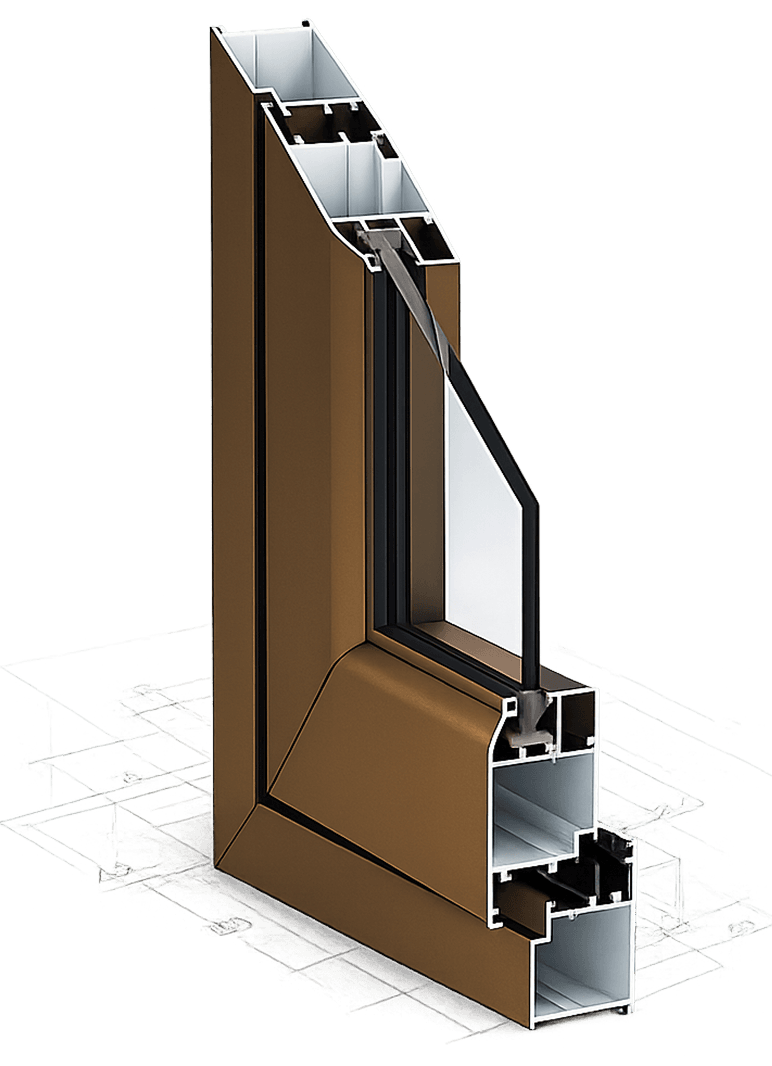

Precision in Detail

Tested and certified to European standards.

System Type

Casement (Inward/Outward)

Glass Thickness

5 – 24 mm

Frame Width

39 mm

Load Capacity

40 kg / sash

Air Infiltration

Class 3 (EN 12207)

Water Tightness

Class 7A (EN 12208)

Wind Load

≤ 2 kPa (Class B5)

Max Panel Size

700 × 1500 mm

Applied in Real Projects

Specified across residential and commercial projects where performance and design clarity matter.

Architectural Nuance

Our palette is selected for timelessness. Each finish is applied using electrostatic powder coating for maximum durability.

40 + Colors Available

* Colors shown are digital representations. Request physical samples for exact matching.
